NissanVanette SerenaKVC2301.1997 - 01.1998Engine and fuel system214 - radiator (fan motor & shroud) (Denso) 214 - radiator (fan motor & shroud) (Denso) for Nissan Vanette Serena KVC23
| |||||||||||||||||||

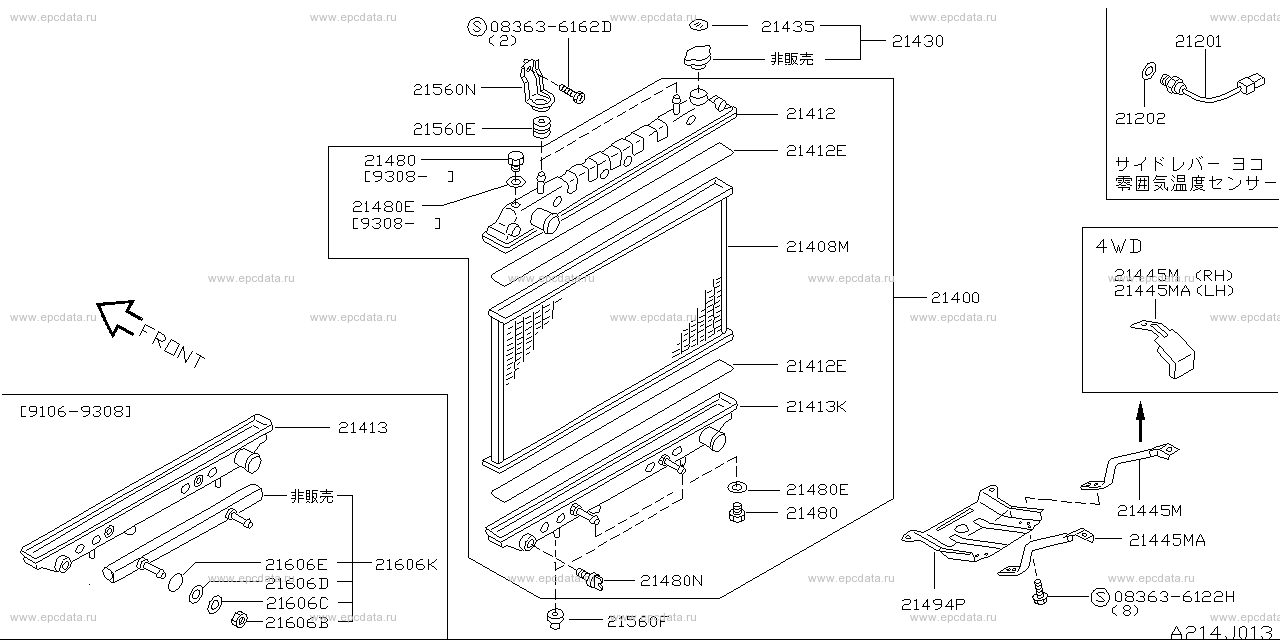

| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T.AT | 05.1994 - 01.1997 | ラジエーター |
| CD20ET.AT | 01.1997 - 01.1998 | ラジエーター |
| CD20ET.AT | 01.1998 - ... | ラジエーター |
| 083636122H 083636162D 21201 - sensor assembly, thermo 21202 - rubber, seal 21400 - radiator assembly 21408M - core assembly, radiator 21412 - tank, radiator upper 21412E - seal, packing radiator 21413 - tank, radiator lower 21413K - tank kit, radiator lower 21430 - cap assembly, radiator 21435 - label, caution radiator 21445M - bracket, air guide 21445MA - bracket, air guide 21480 - cock, water drain 21480E - packing, drain 21480N - cock, water drain 21494P - plate, air guide 21560E - mounting rubber, radiator upper 21560F - mounting rubber, radiator lower 21560N - bracket, radiator mounting upper 21606B - nut 21606C - washer, conical 21606D - washer, plain 21606E - seal,O ring 21606K - cooler kit, auto transmission oil |

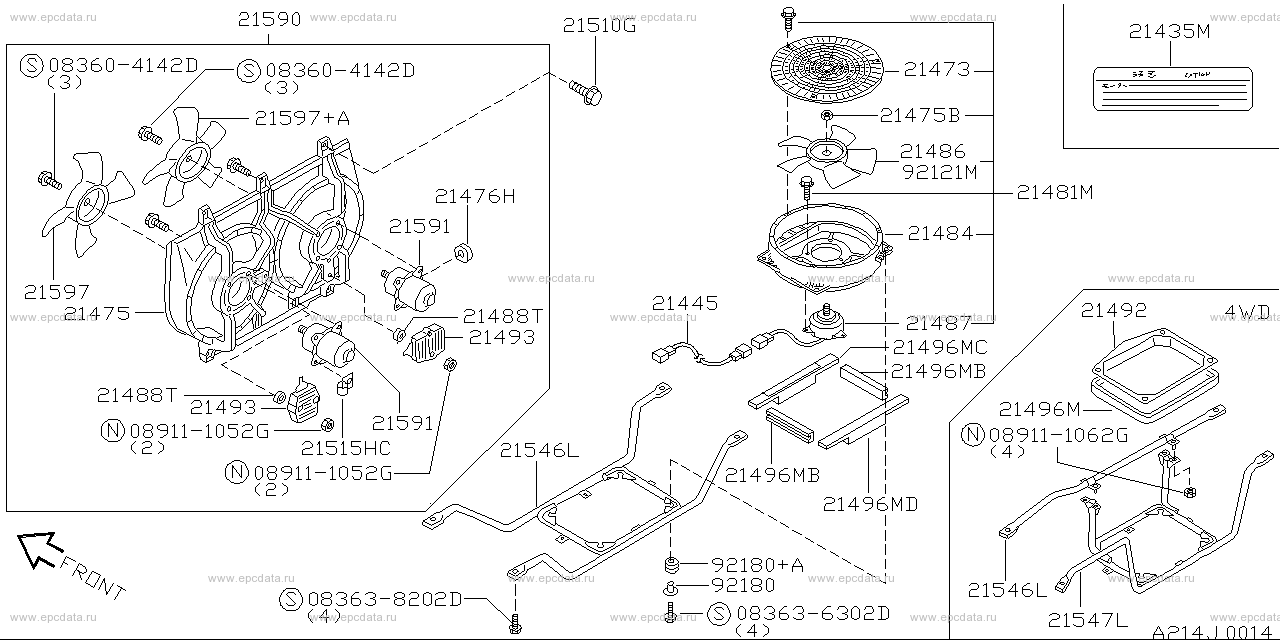

| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T.AT | 05.1994 - 01.1997 | ファンモーター ＆ シュラウド |
| 083604142D 083636302D 083638202D 089111052G 089111062G 21435M - label, motor fan 21445 - harness, sub 21473 - net, radiator 21475 - shroud assembly 21475B - nut 21476H - bracket, motor fan 21481M - motor & fan assembly, with shroud 21484 - shroud 21486 - fan assembly 21487 - motor assembly 21488T - spacer 21492 - bracket, motor fan 21493 - resistance, motor fan 21496M - seal, shroud 21496MB - seal, shroud 21496MC - seal, shroud 21496MD - seal, shroud 21510G - screw 21515HC - clip 21546L - bracket assembly, radiator mounting 21547L - bracket assembly, radiator mounting 21590 - motor & fan assembly, with shroud 21591 - motor assembly, fan 21597 - fan, motor 21597+A - fan, motor 92121M - fan, condenser 92180 - bush 92180+A - bush |

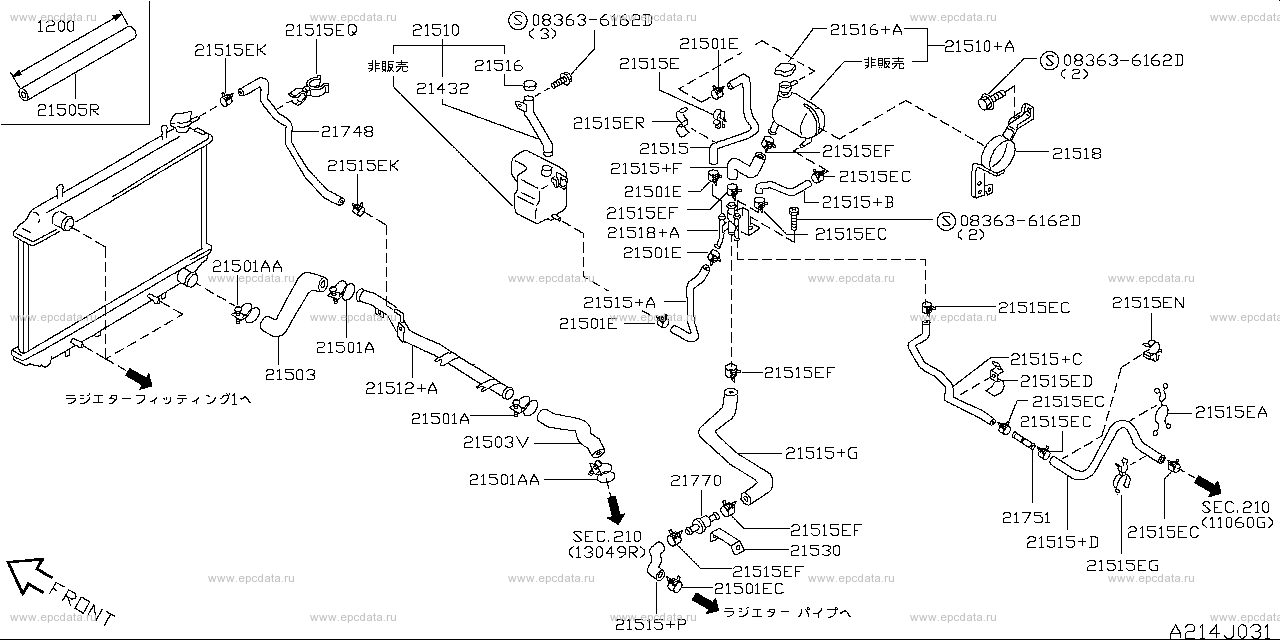

| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T.AT | 07.1995 - 01.1997 | ラジエーター フィッティング パーツ２ |
| CD20ET.AT | 01.1997 - 01.1998 | ラジエーター フィッティング パーツ２ |
| CD20ET.AT | 01.1998 - ... | ラジエーター フィッティング パーツ２ |
| 083636162D 21432 - neck assembly, filler 21501A - clamp, hose 21501AA - clamp, hose 21501E - clamp, hose 21501EC - clamp, hose 21503 - hose, radiator lower 21503V - hose, radiator lower 21505R - hose assembly, water 21510 - tank assembly, reserve 21510+A - tank assembly, reserve 21512+A - pipe, sub radiator 21515 - hose, reserve tank 21515+A - hose, reserve tank 21515+B - hose, reserve tank 21515+C - hose, reserve tank 21515+D - hose, reserve tank 21515+F - hose, reserve tank 21515+G - hose, reserve tank 21515+P - hose, reserve tank 21515E - clip 21515EA - clip 21515EC - clip 21515ED - clip 21515EF - clip 21515EG - clip 21515EK - clip 21515EN - clip 21515EQ - clip 21515ER - clip 21516 - cap, reservoir tank 21516+A - cap, reservoir tank 21518 - bracket assembly, reserve 21518+A - bracket assembly, reserve 21530 - bracket, radiator hose 21748 - hose, radiator bypass 21751 - connector, hose 21770 - valve, one way |

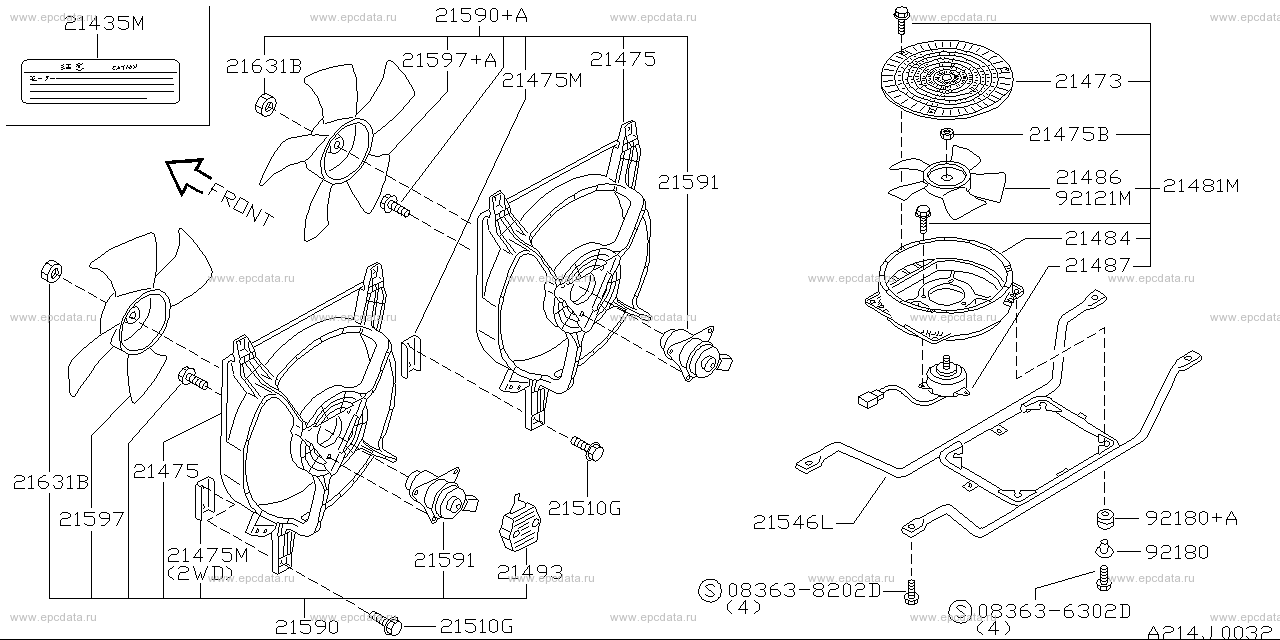

| Applies for models | Manufacture period | Spec |
|---|---|---|
| 2WD.CD20ET.AT | 01.1997 - 01.1998 | ファンモーター ＆ シュラウド |
| CD20ET.AT | 01.1998 - ... | ファンモーター ＆ シュラウド |
| 083636302D 083638202D 21435M - label, motor fan 21473 - net, radiator 21475 - shroud assembly 21475B - nut 21475M - cover, radiator shroud 21481M - motor & fan assembly, with shroud 21484 - shroud 21486 - fan assembly 21487 - motor assembly 21493 - resistance, motor fan 21510G - screw 21546L - bracket assembly, radiator mounting 21590 - motor & fan assembly, with shroud 21590+A - motor & fan assembly, with shroud 21591 - motor assembly, fan 21597 - fan, motor 21597+A - fan, motor 21631B - nut 92121M - fan, condenser 92180 - bush 92180+A - bush |

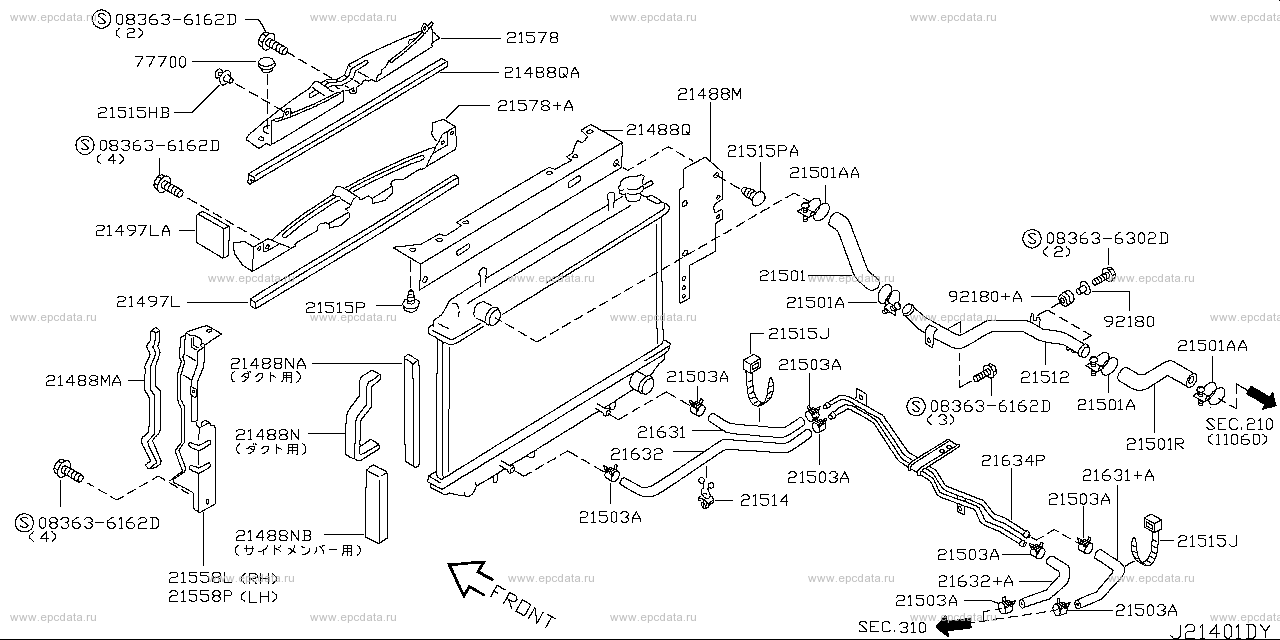

| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T.AT | 08.1995 - 01.1997 | ラジエーター フィッティング パーツ１ |
| CD20ET.AT | 01.1997 - 01.1998 | ラジエーター フィッティング パーツ１ |
| CD20ET.AT | 01.1998 - ... | ラジエーター フィッティング パーツ１ |
| 083636162D 083636302D 21488M - seal, radiator RH 21488MA - seal, radiator RH 21488N - seal, radiator LH 21488NA - seal, radiator LH 21488NB - seal, radiator LH 21488Q - seal, radiator upper 21488QA - seal, radiator upper 21497L - seal, radiator lower 21497LA - seal, radiator lower 21501 - hose, radiator upper 21501A - clamp, hose 21501AA - clamp, hose 21501R - hose, radiator upper 21503A - clamp, hose 21512 - pipe, sub radiator 21514 - clip, hose 21515HB - clip 21515J - clip 21515P - clip 21515PA - clip 21558L - guide, air radiator side 21558P - guide, air radiator side 21578 - guide, air radiator 21578+A - guide, air radiator 21631 - hose, auto transmission oil cooler 21631+A - hose, auto transmission oil cooler 21632 - hose, oil cooler auto transmission 21632+A - hose, oil cooler auto transmission 21634P - tube assembly, auto transmission 77700 - grommet, rubber 92180 - bush 92180+A - bush |
